| 0 : Initialisations | 6 : Char select screen |
| 1 : Logo | 7 : Char story (optionnal) |
| 2 : Intro | 8 : Stage story (personnal idea) |
| 3 : Menu screen | 9 : Vs screen |
| 4 : Option screen | 10 : Battle |
| 5 : Key config screen | P : pause |

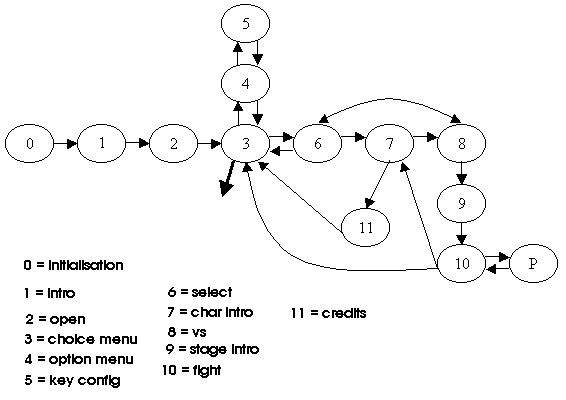

All arrows means that there's a possible transitions between states.
Exemple of engine life (from one possible start to one possible end), when I
put 'validation' it means player validation, enter key or esc key (sometime):
- State 0 : initialise vars, read config, read system.def, etc...
at the end
- State 1 : Process the logo (if there's a logo)
at the end or with validation or if there's no logo
- State 2 : Process the Intro (if there's one)
at the end or with validation or if there's no logo
- State 3 : Process the menu screen
at a selection (except option or exit)
- State 6 : Process the char select screen
at a selection
- State 9 : Process the VS screen
at the end or with validation
- State 10 : Process the battle
at the end
- State 3 : Process the menu screen
at 'exit' choice
- State 666 : exit (free memory and stuff like that)
